Epoxy resin adhesive

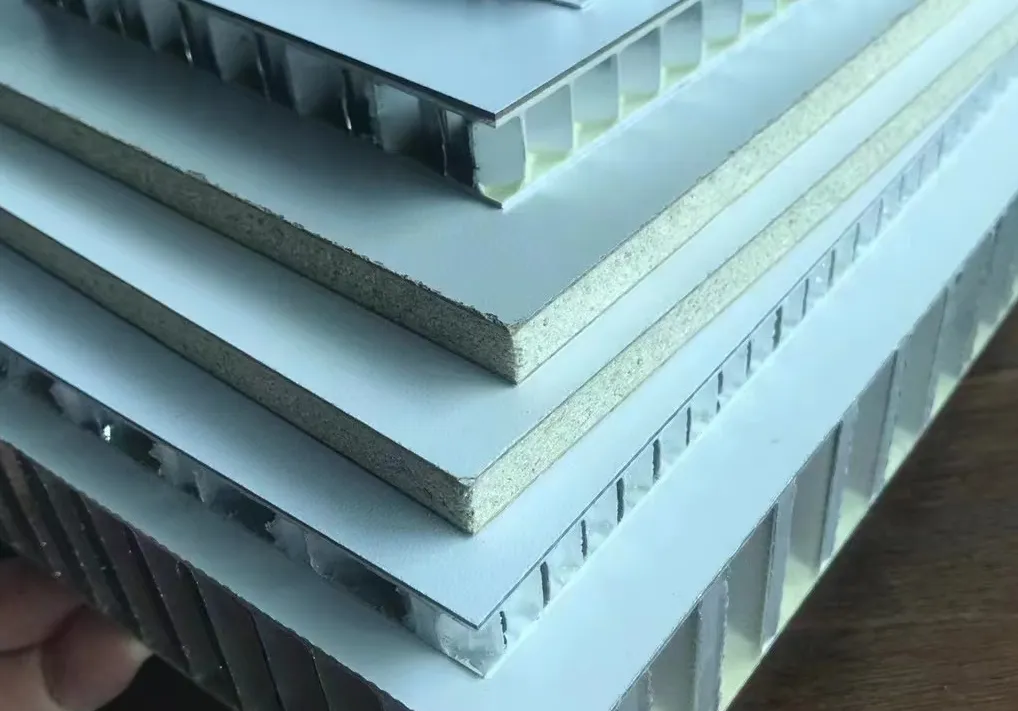

1172 Composite Epoxy (For aluminum honeycomb)
1172 Composite Epoxy is a two-component structural adhesive with 2:1 mixing ratio, featuring easy brushing operation, high bonding force and low curing stress, specially developed for laminating marble sheets with aluminum honeycomb panels.
DESCRIPTION
Product Basic Info
Item No.: 1172
Mix ratio by weight: A:B=2:1
Performance: Easy to brush, high adhesion, Low stress. It is used for marble lamination with Aluminum honey comb.
Technical Data
| No | Item | Component / Test Condition | 1172 Composite Epoxy | 1172 Composite Epoxy (for aluminum honeycomb) |
|---|---|---|---|---|
| 1 | Appearance | Part A | Gray-white paste fluid | Gray-white paste fluid |
| Part B | Gray-white paste fluid | Gray-white paste fluid | ||
| 3 | Mix ratio(A:B) | - | 2:1 | 2:1 |
| 4 | Pot life(25℃, min) | - | 30-50 | 35-45 |
| 5 | Initial curing time(25℃, h) | - | 3-5 | 6-12 |
| 6 | Shear Strength(RT48h, MPa) | - | ≥7.0 | ≥16.0 |
| 7 | Shear Strength (Stone-Stone, MPa) | Standard condition, 48h | ≥8.0 | ≥8.0 |
| Immersion, 168h | ≥8.0 | ≥8.0 | ||
| Heat treatment, 80℃, 168h | ≥8.0 | ≥8.0 | ||
| Freeze-thaw cycle 50 times | ≥8.0 | ≥8.0 | ||
| 8 | Shear Strength (Stone-Stainless steel, MPa) | Standard condition, 48h | ≥12.0 | ≥12.0 |
Specification & Packaging
- 30kg/set(A:25kg/drum B:5kg/drum)
